MSD Digital6 Plus Installation Completed

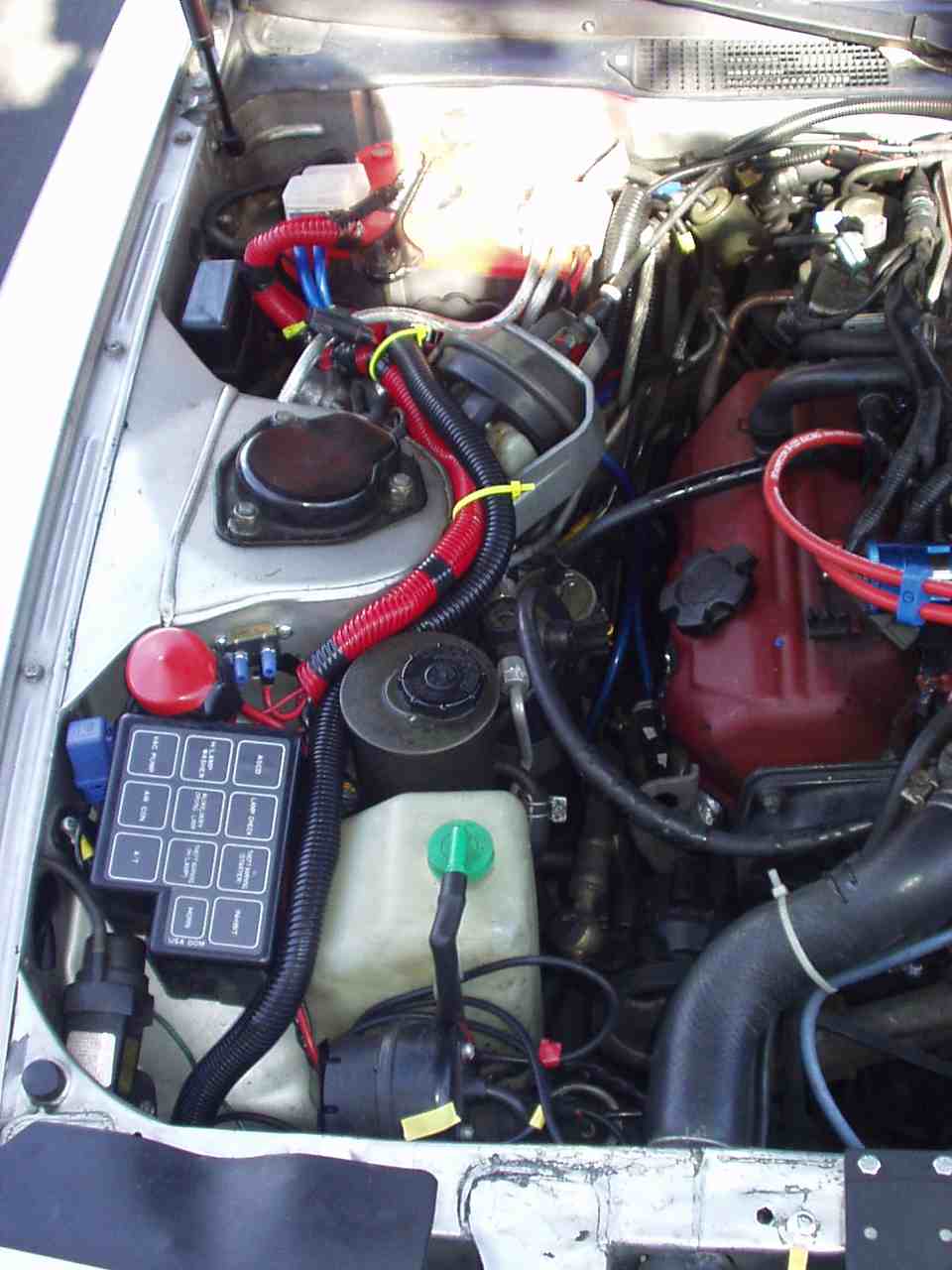

Update 07/30/05: Relocate to battery area:

Update 11/07/04:

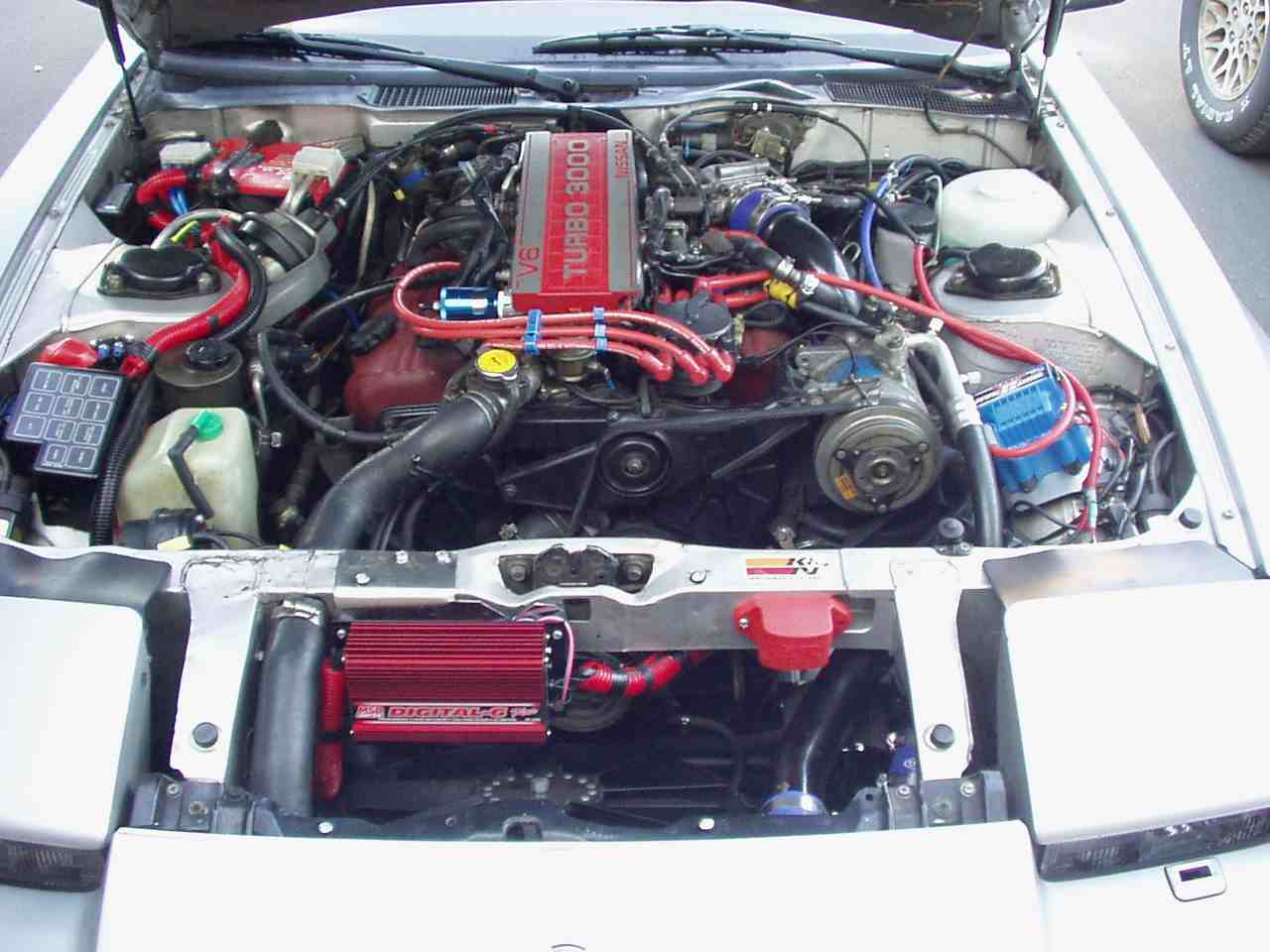

• Msd Digital6 Plus installed

• MSD Digital6 Installation Instructions

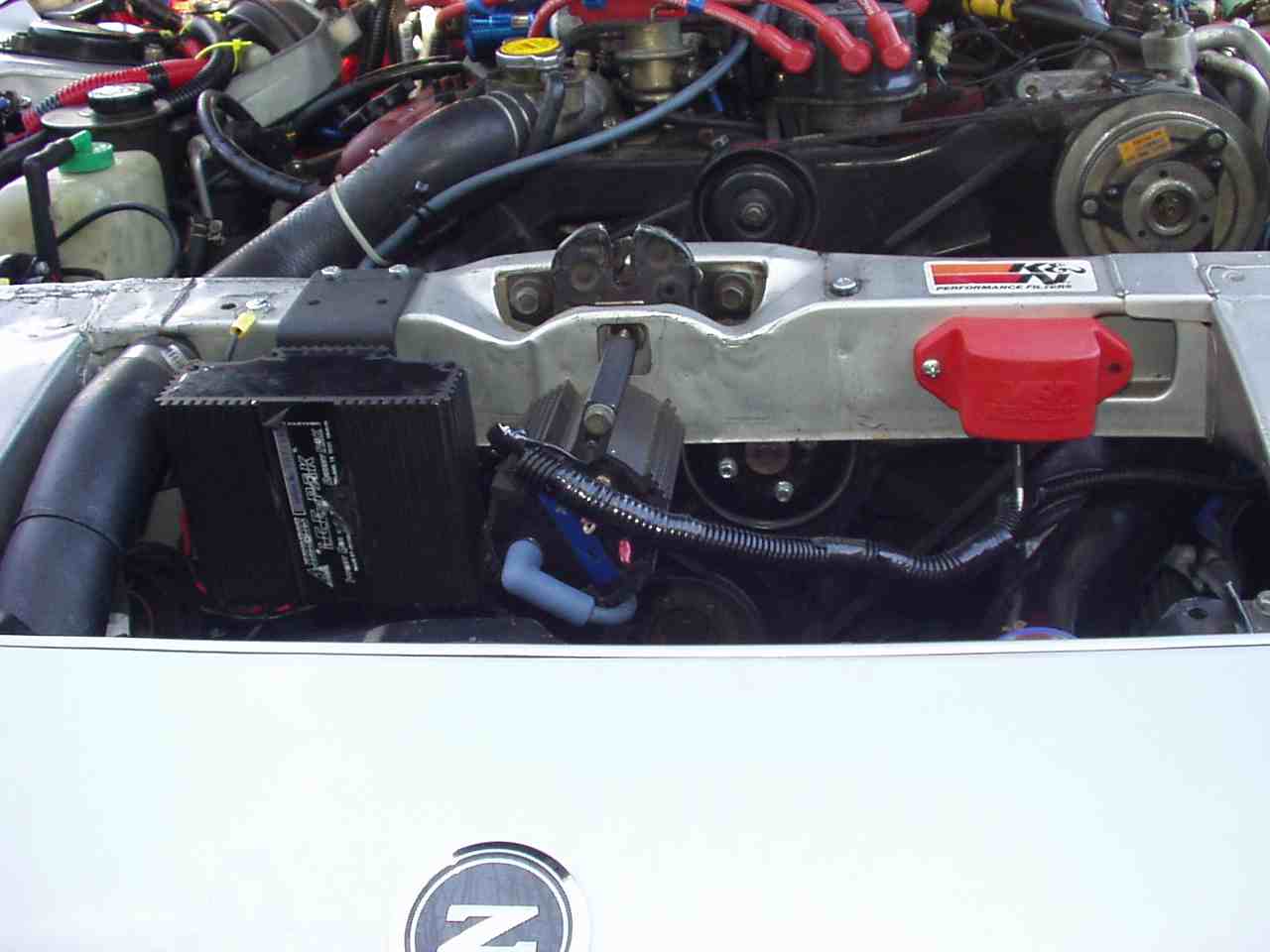

Install complete. Fabricated a SS mount for the box.

Update 11/02/04:

Status: Have the Digital6, need to install.

Update 10/21/04:

MSD Digital6 Plus MSD-6520

Update 11/04/04:

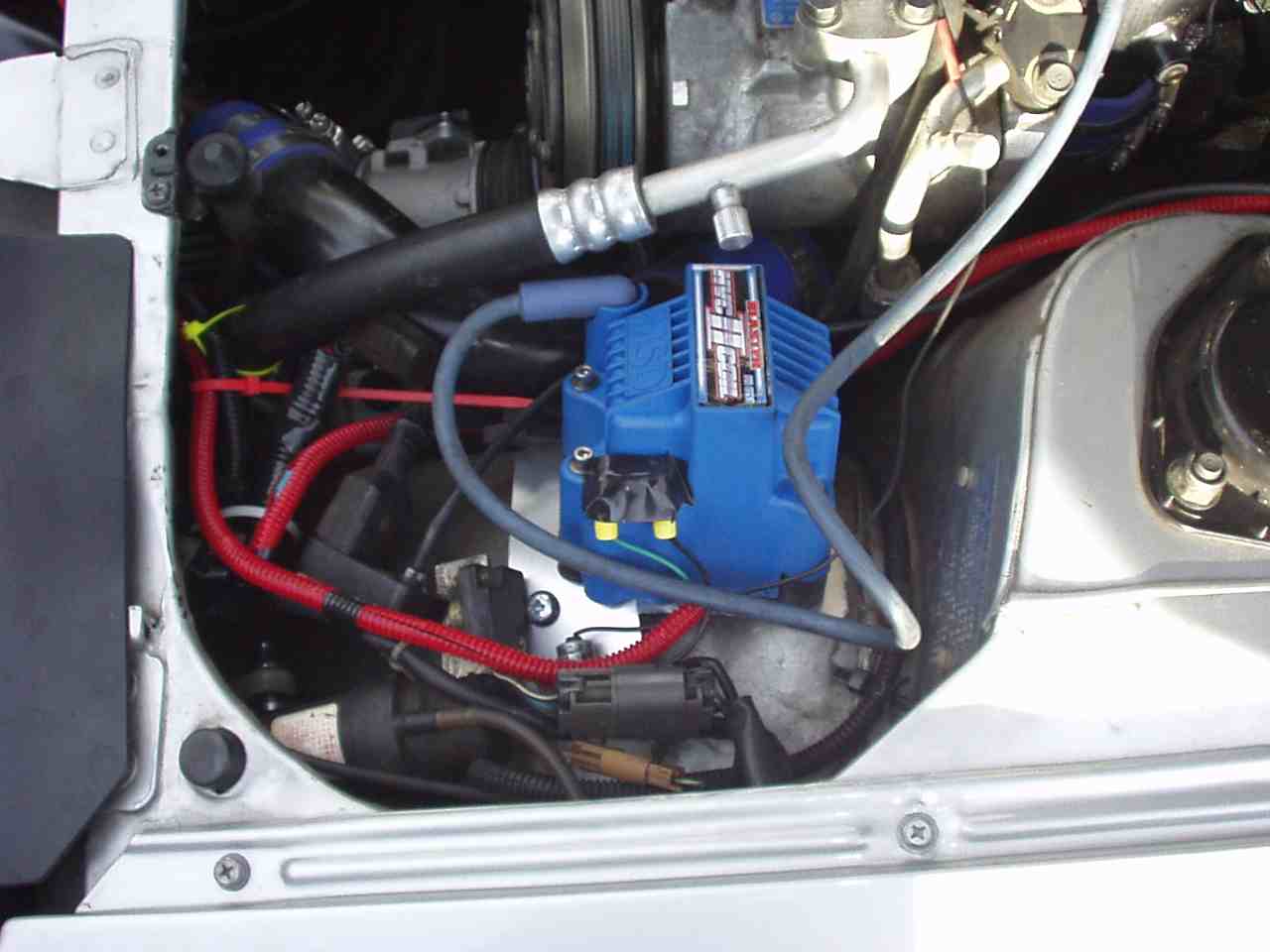

• MSD BlasterII Coil install

Status: Installed.

Fabricated a SS (for kitchen counters) mounting plate. Bolted to factory locations (no new holes). Very close hood clearance.

• Update 10/21/04:

Got the coil from Martel's because they have it now. SummitRacing also has good prices.

MSD Blaster HVC-2 MSD-8253

Update 10/21/04:

• Magnecor 10mm Ignition Wire set Install

Magnecor 10mm Item 6960

I had to alter the coil wire. The Blaster Coil came with the connector.

Update 10/15/04:

• Jacobs Spark trigger elimination:

Install note: The Jacobs did not need the diode for the tach adapter.

• MSD Noise Filter Capacitor 121-8830 from Jeg's
  Jacobs or MSD use's 1Amp per 1000 RPM, about 6Amps at redline. This cap. can handle over 30Amps.
  I have this installed already.



• MSD Tach Adapter 121-8910 from Jeg's

  This will allow me remove the coil trigger from my Jacob's Ignition. Have it, need to install.

  • MSD 8910 Installation Instructions

  •

•
  See: http://thumper300zx.com/modifications/msd/msd.htm

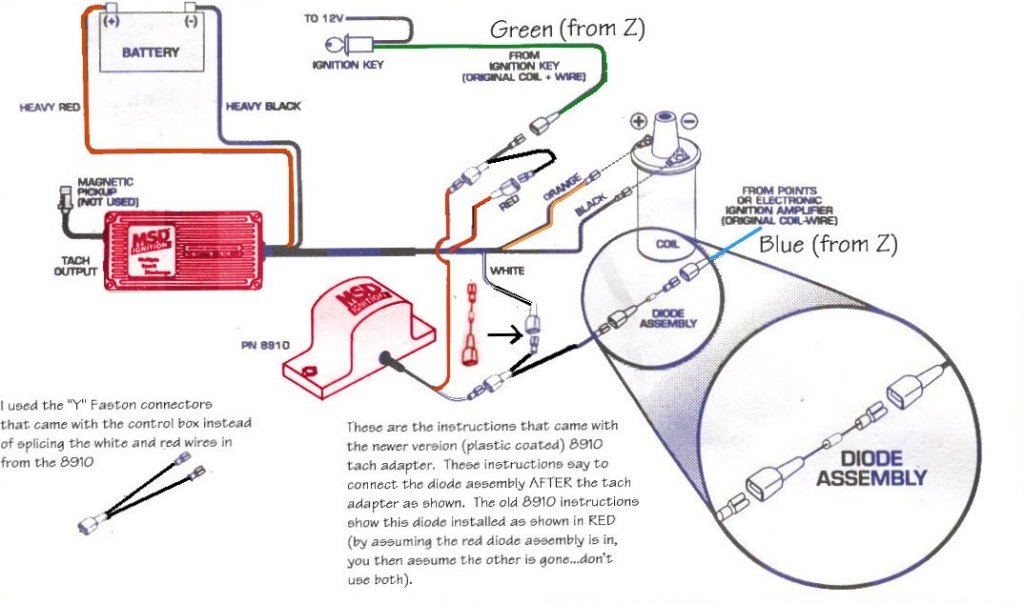

  There is a diode assembly that must be installed with the white strip facing away from the MSD control box on the white wire. It must be installed BEFORE the tach adapter, and not after.

I'm thinking of permanently mounting the capacitor just in front of the relay box. This is good for now

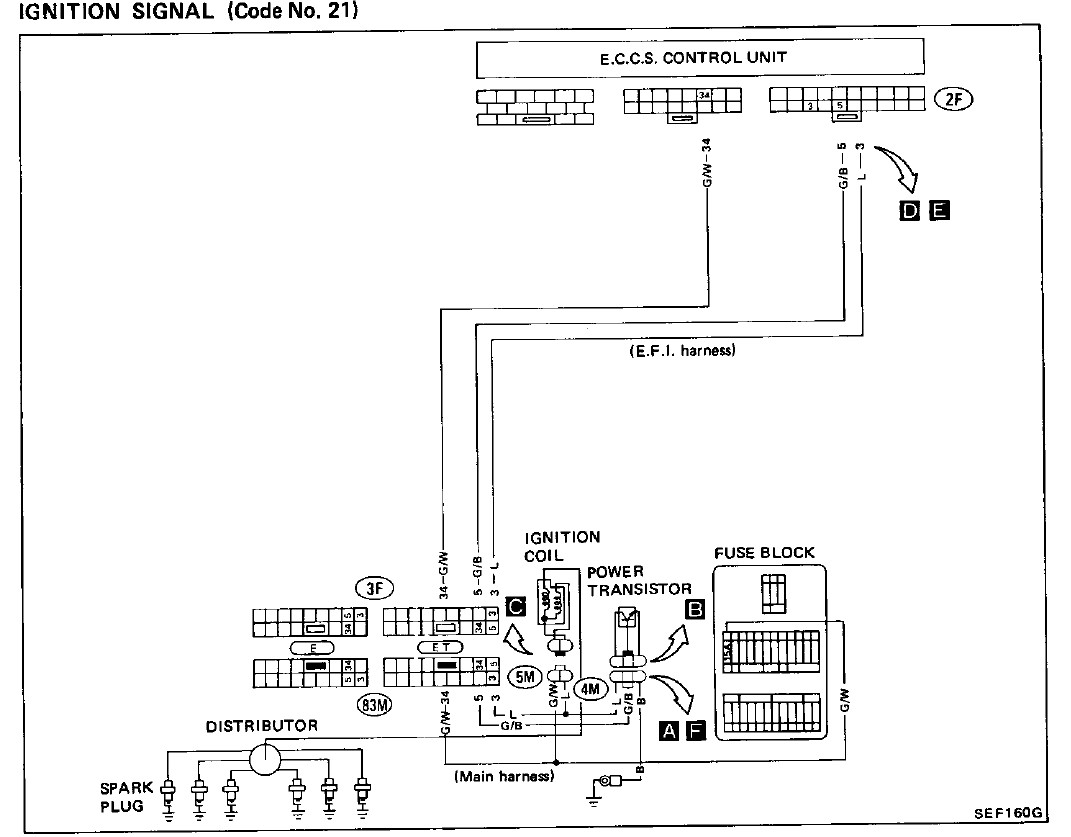

Z31 Ignition Signal Wiring:
