1988 Front Tension Rod Upgrade

Status: Completed 05/05/04:

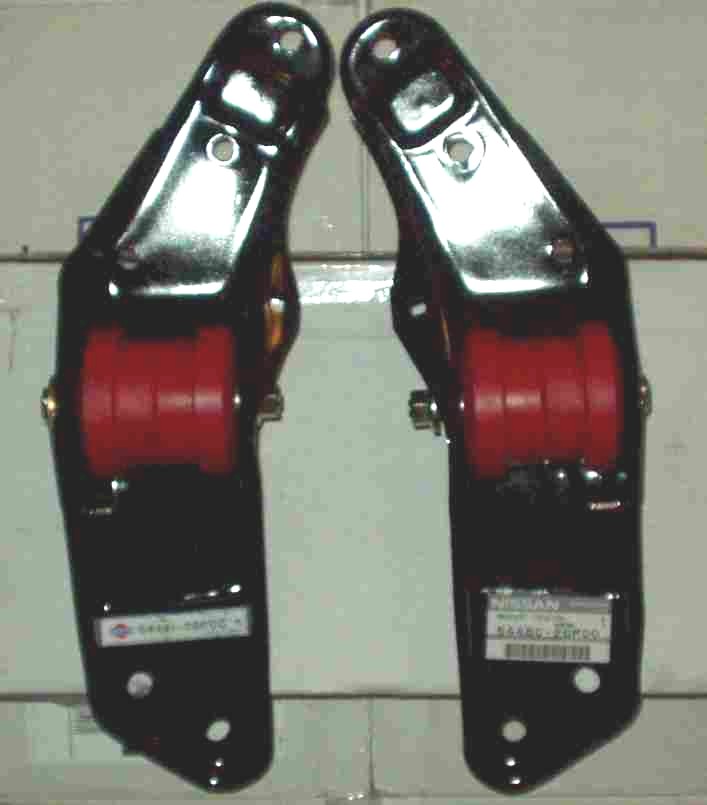

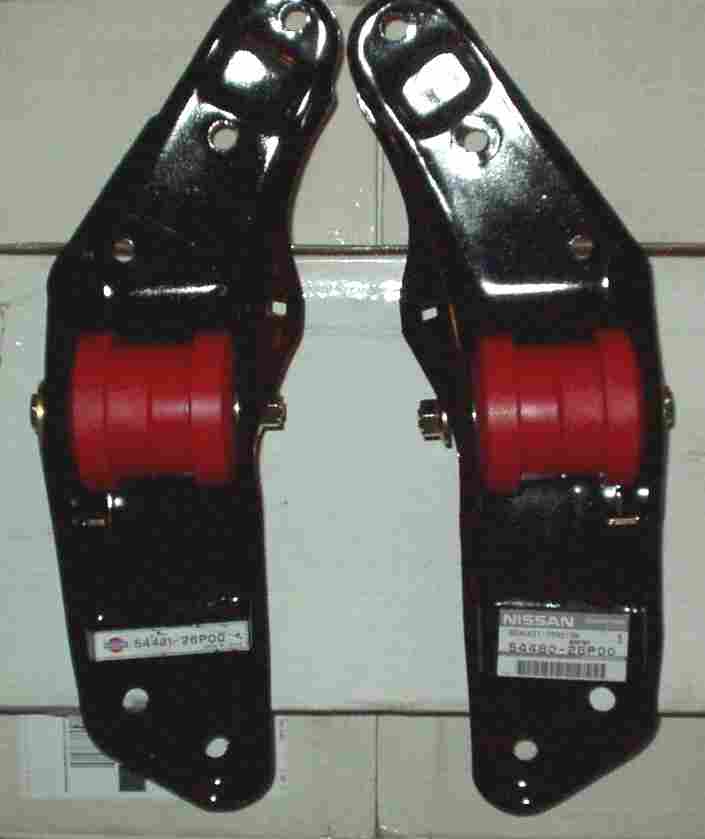

I got new 1988 front tension rod brackets and tension rods from nissanparts.cc  .

The used ones I got were unusable. Bolts were rusted to sleeves.

• Got brackets new from nissanpparts.cc

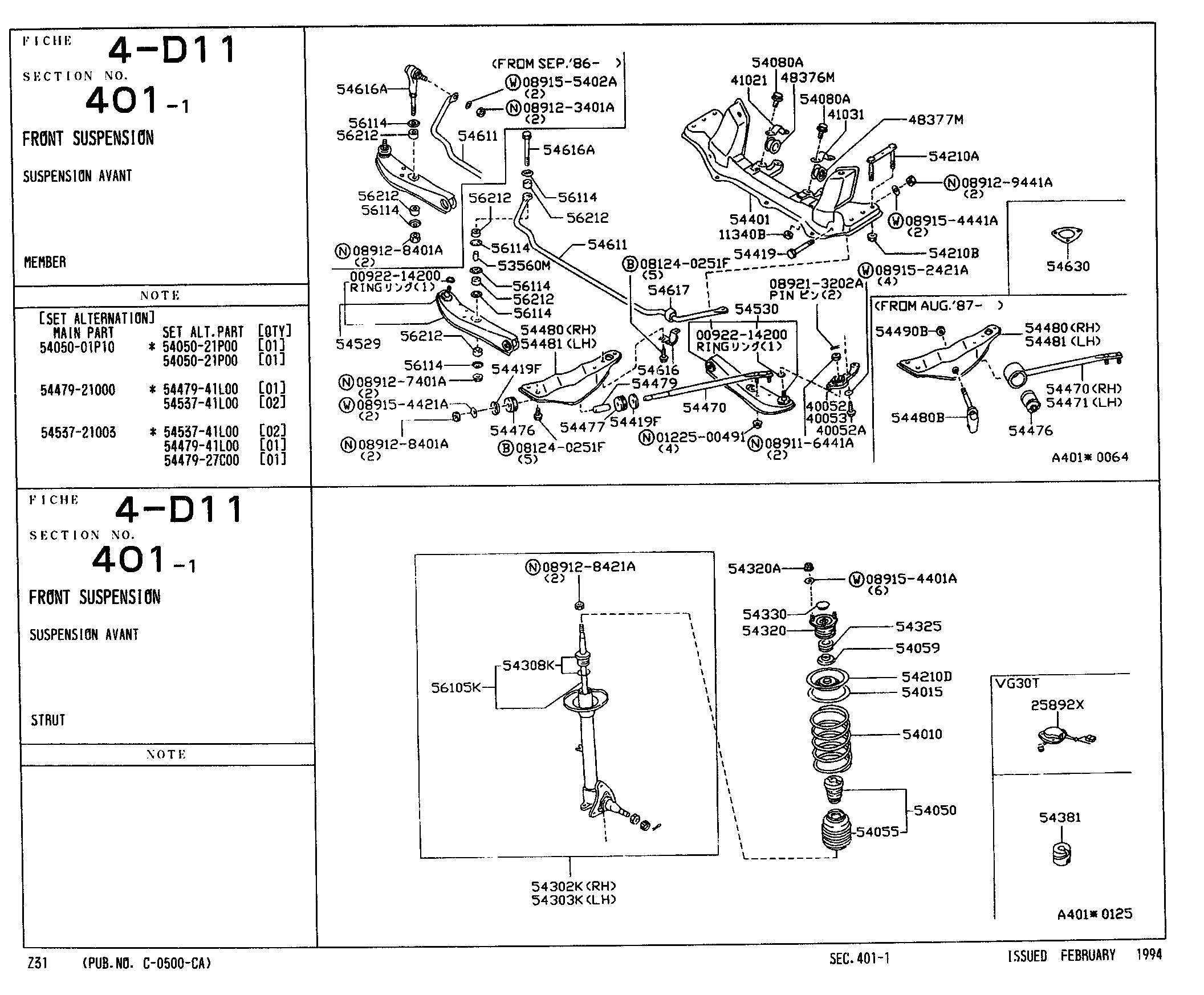

  • Z31 Front Suspension

  • Z31.com Suspension Modifications

  • Part list:

    • 54480-26P00 1 Bracket Tension $118.41 $90.23 $90.23
      54481-26P00 1 Bracket Tension $118.41 $90.23 $90.23
      54470-26P00 1 Rod-tension Rh $59.19 $45.10 $45.10
      54471-26P00 1 Rod-tension Lh $51.76 $39.45 $39.45
      54475-26P00 2 Bolt $2.29 $1.75 $1.75
      01225-00491 6 Nut $2.48 $1.89 $1.89

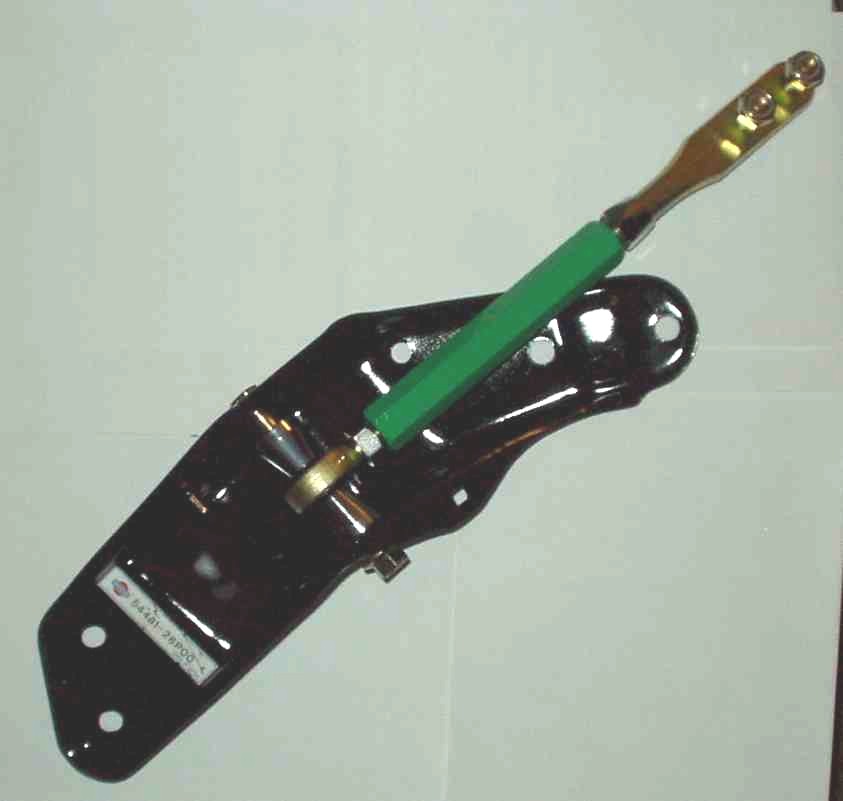

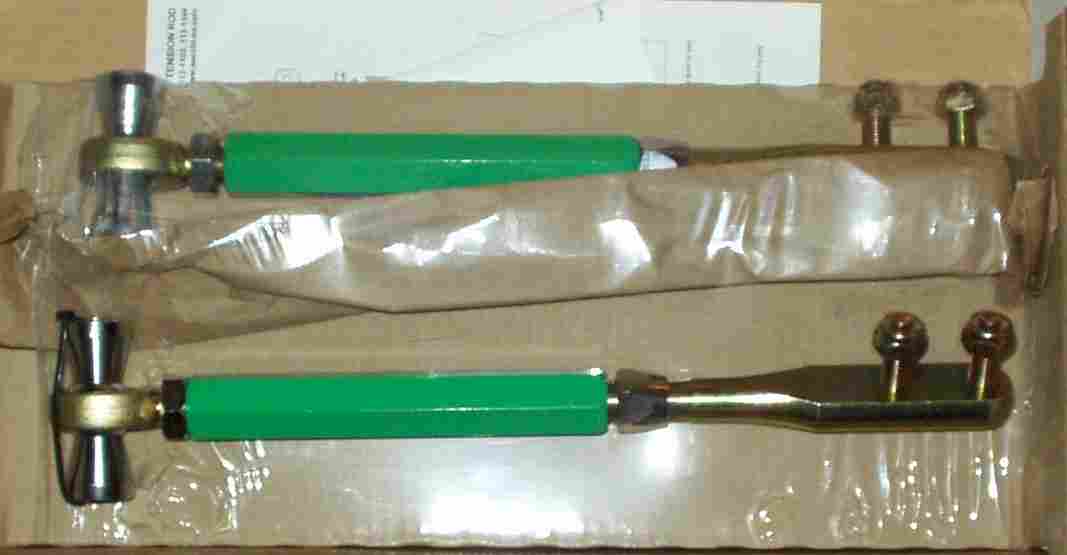

  • Z32 Adj. Tension Rods - Courtesy Nissan Parts: 99995-Z32ADJ

    These don't work with the z31. They are too short, not angled. AND the right tension rod is slightly different then the left. Rumor that s14/s15 ones will be long enough.



Don't have the angle to the dangle....
